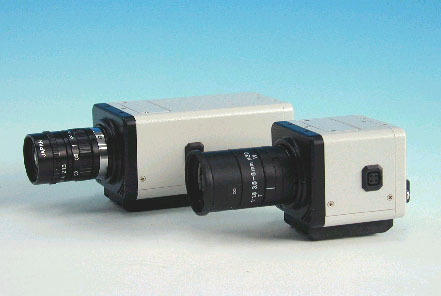

CT-541/545 |
|
DSP
Color CCD Camera
|
| 1/4" CCD Sensor |
 |
| 330TV Lines Resolution | |
| Y/C Output | |
| Backlight Compensation | |
| AGC High/Low Selectable | |
| 1 lux Scene Illumination | |
| Easy Access To Mode Setting | |
| S/N 50db Or More | |
|
TYPE DESIGNATION
|
|
|
M = Board /w CS Mount Adaptor S = Short Case Model, L=50mm L = Long Case Model, L=96mm |
|
Model
|
CT-541
(NTSC), CT-545 (PAL)
|
|
Sensor
|
1/4"
Format CCD
|
|
Number
of Effective Elements
|
510x492
(NTSC), 500x582 (PAL)
|
|
Sync.
System
|
Internal
X'tal Control
|
|
Scanning
System
|
2:1
Interlace
|
|
Video
Output
|
VBS
1.0 Vp-p, 75ohms
|
|
Horizontal
Resolution
|
330
TV Lines
|
|
S/N
Ratio
|
50db
(AGC Off)
|
|
Electric
Shutter
|
1/60
(1/50 For PAL) - 1/10,000 Sec.
|
|
Gamma
|
0.45
Or 1.0 Switchable
|
|
AGC
|
Off / On (High/Low) Selectable
|
|
Min.
Scene Illumination
|
1
lux F1.2 With AGC On High
|
|
Lens
Mount
|
CS
- Mount
|
|
Power
Requirement
|
12
VDC, +-10%, 180ma Max.
|
|
Storage
Temperature
|
-30
To +70
|
|
Operating
Temperature
|
-10
To +40
|
|
Weight
|
Type-M:
25g, Type-S: 105g, Type L: 130g
|
|
Dimensions
(WxHxL)
|
CT-541M/545M: 42x42x28.7mm (1.65x1.65x1.13")
|
|
CT-541S/545S: 50x47x50mm (1.97x1.85x1.97")
|
|
|
CT-541L/545L: 50X47X96MM (1.97X1.85X3.78")
|
|
